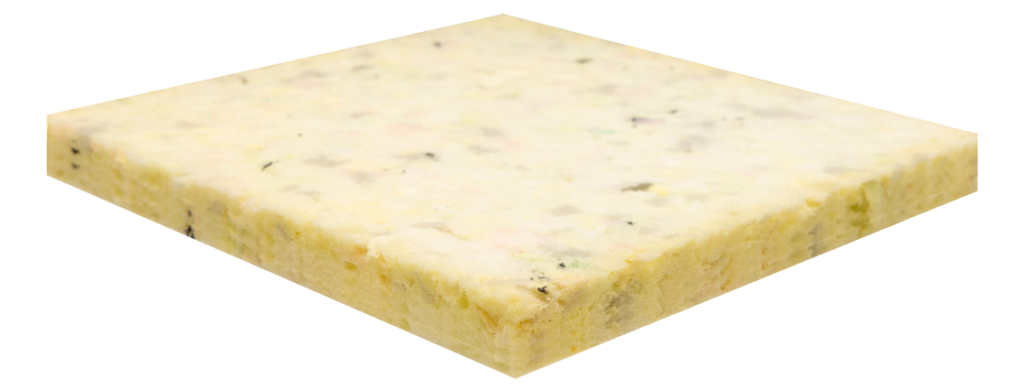

Acoustic panel made from 100 % recycled granulated PU foam. Subsequently finished with reinforcing mesh and our acoustic plaster.
The Flex 019-R acoustic panel is suitable for flat or curved surfaces that are solid and stable. The panels must be glued/adhered. If the panels need to be mounted on battens, we recommend our Hz Dual acoustic panels.
The Flex 019-R acoustic panel consists of:
Hz Flex acoustic panels can be adhered to ceilings or walls that are solid and stable, as well as suspended constructions made of gypsum or fiber concrete. They can be used in both dry and wet areas. The substrate must be able to support a minimum of 10 kg/m².
Panels should be stored frost-free and protected from moisture. The temperature must not exceed 40 °C, and the panels should not be exposed to direct sunlight. Place the panels on-site 2-3 days before installation to allow for moisture stabilization.
The substrate must be even, dry, and free from grease and loose particles. Loose plaster, chalking, and other non-durable surfaces must be removed, and the substrate primed with Hz Plaster Primer. Previously painted as well as new surfaces must also be primed with Hz plaster primer. Hz Flex-R acoustic panels are fully adhered using Hz Adhesive, with a consumption of 1.5-2 kg/m². Always follow the supplier’s installation guidelines.
At 20 °C and 50 % relative humidity (RH), the adhesive becomes stable after 15-20 minutes and is fully cured after 24 hours.
For safety information regarding transport, storage, handling, and disposal, refer to the product safety data sheet. The above specifications, including processing and application recommendations, are based on our knowledge and experience under normal conditions and assume that the products are stored and used correctly. Due to variations in materials, substrates, and working conditions, we cannot provide a general guarantee for the outcome or adhesion. It is always the responsibility of the user to verify whether the product is suitable for the intended purpose.
| Pladetykkelse | 20 mm |
| Pladeformat | 1000 x 500 mm (0,50 m²) |
| Forbrug | 2 plader pr. m² |
| Farve | Blandede farver |
| Brandklasse | B-s1, d0 i henhold til EN 13501-1 |
| Termisk ledningsevne | w/mk 0,036 – 0,040 |
Hz Flex 019-R with Acoustic Plaster 03:
Hz Acoustic Plaster 03
Download the product data sheet for Hz Flex 019-R acoustic panel here.
